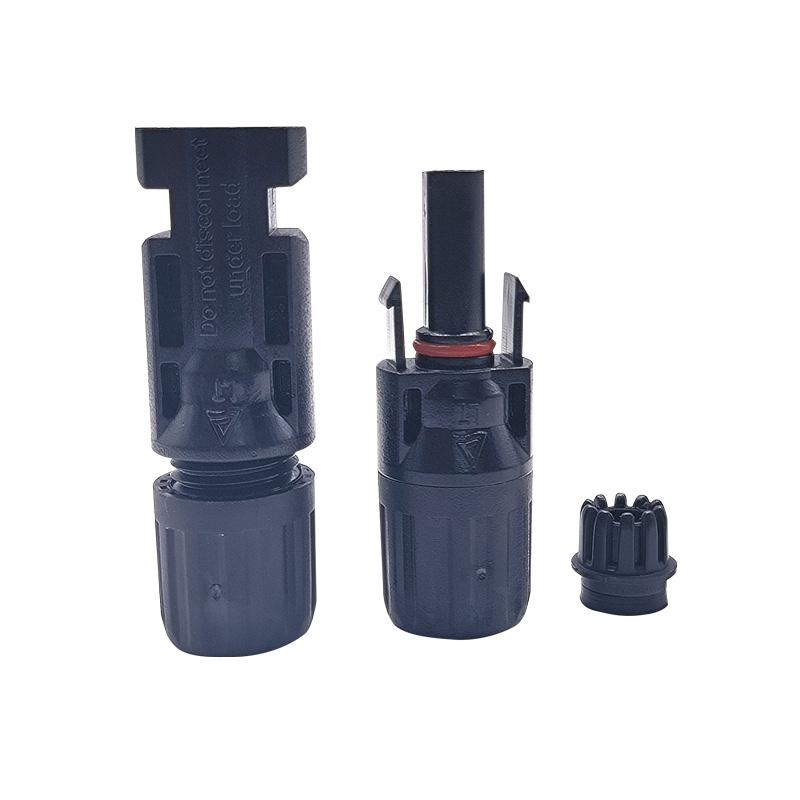

Solar Connector IP67 Waterproof Solar Panel Cable Connectors Male/Female

PV-0000-02/PV-LTM3 MC4 connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations.

  • Item NO.:

    PV-0000-02
  • Order(MOQ):

    100
  • Payment:

    T/T,L/C,Western Union,Paypal,MoneyGram
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    15 Days
Product Name Solar DC Connector
Model PV-0000-02
Rated Voltage 1000V DC
Rated Current 30A/50A
Temperature Range -40℃~90℃/105℃
Material PC/PPO,Copper
Waterproof IP67
Flame class UL-94-V0
Salt mist spray test,degree of severity IEC 60068-2-52

VALUE FOR MONEY: With 1 pairs of solar panel connectors Male & Female and 1 pairs of solar connector pins (Male & Female). In addition, we can present a pair of spanners to you in order to easy your installation.

CONDUCTOR PIN IS TINNED COPPER: It makes a rock-solid connection after crimping the pin into the wire and tighten the connectors, also, these solar connectors can keep operating perfectly under heavy load.

WIDE APPLICATIONS RANGE: Compatible with PV cables (Solar Cable) with different insulation diameters (13AWG to 10 AWG), which is suitable for solar cables in various specifications on the market.

WATERPROOF DESIGN & EASY INSTALLATION : Waterproof ring on connection is perfect to seal out water and dust to prevent corrosion. Quick & simple assembly processing and simple removal of plugs.

LONGER WORKING LIFE: PPO material with excellent aging resistance and UV endurance, keep working in rain, high force winds, and snow for more than 20 years! Solar panel connector

mc4 connector solar panel mc4 solar
