M12 X-Coded 8-Pin to RJ45 Industrial Ethernet Cable for Cognex Sensors

M12 X-coded 8-pin to RJ45 industrial Ethernet cable, shielded, flame-retardant, compatible with Cognex, SICK, Keyence cameras

Order(MOQ):
100
Payment:
T/T,L/C,Western Union,Paypal,MoneyGram
Product Origin:
China
Color:
Teal/Green, Black, Silver, Yellow, White
Shipping Port:
Shenzhen
Lead Time：
28 Days

Inquiry now

Product Detail

Wire Type	Industrial Ethernet cable, shielded, flame-retardant
Wire Gauge	Standard for 8-pin M12 Ethernet
Connector Type A	M12 Male, X-coded, 8-pin, straight or right angle
Connector Type B	RJ45 Male, shielded, 8-pin
Cable Standard	Cat6A / Cat7 (10 Gbps)
Conductor	Oxygen-free copper, Tin-plated copper
Insulation	PE / Foam PE
Outer Jacket	Industrial green / Black / Yellow
Temperature Range (fixed)	25°C to +85°C
Data Rate	Up to 10 Gbps
Certification	UL, TUV, ISO9001, CE, RoHS
Connector Type	M12 X-coded 8-pin / RJ45 shielded Up to 10 Gbps
Standard Lengths	0.5m / 1m / 2m / 3m / 5m / 10m (custom up to 50m)
M12 Protection Rating	IP67
M12 Mating Cycles	≥ 100 cycles
RJ45 Mating Cycles	≥ 750 cycles
Insulation	VW-1 flame-retardant PVC
Color	Industrial green
Wiring Standard	TIA/EIA 568B
Application	Machine vision, Industrial cameras, PLC, PROFINET, EtherNet/IP
Keywords	M12 X-coded cable / industrial Ethernet cable / RJ45 adapter cable / Cognex compatible

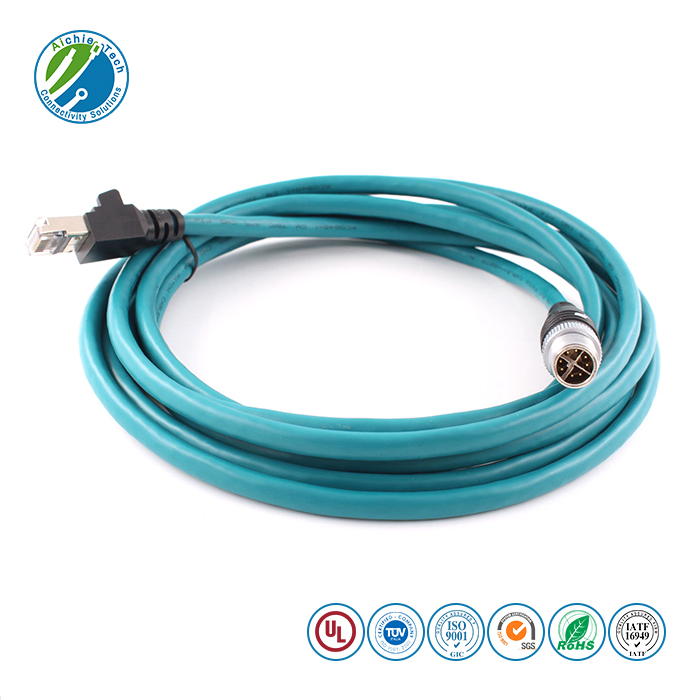

M12 X-Coded 8-Pin to RJ45 Industrial Ethernet Cable

High Speed Network Cable

Industrial Ethernet Cable

Camera Ethernet Cable

Custom Ethernet Cables

Bulk M12 RJ45 Cables

Key Features

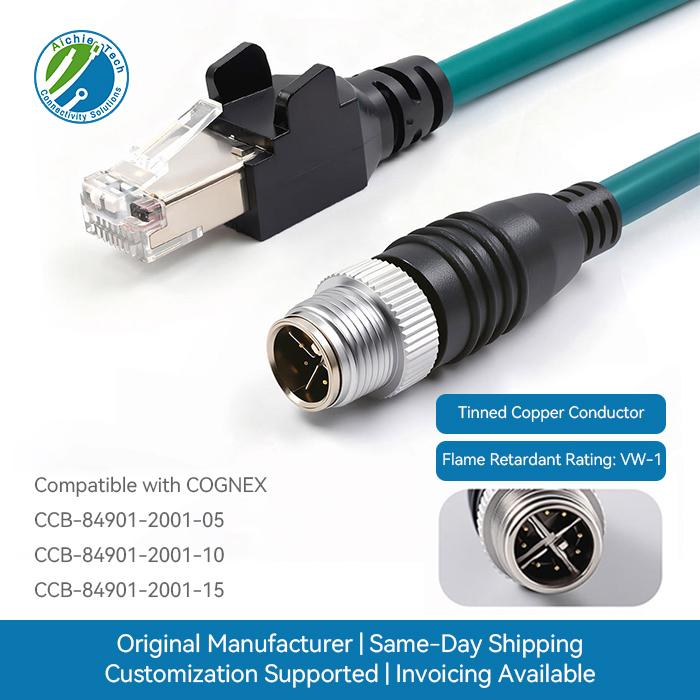

M12 X-coded 8-pin to RJ45 for reliable industrial connectivity
Shielded RJ45 and M12 connectors, metal housing, corrosion-resistant
Tin-plated copper conductors, VW-1 flame-retardant material

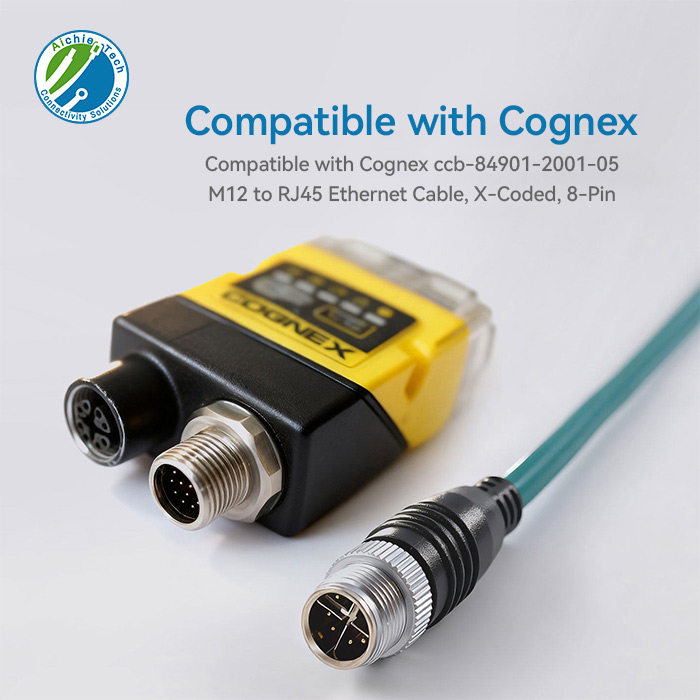

Compatible with Cognex, SICK, Keyence cameras (CCB-84901-2001 series)
Industrial green cable, flexible and durable
UL, TUV, ISO9001, RoHS certified
OEM/ODM customization available
Supports fast delivery for bulk orders

Why Our Cable is Safer and More Reliable

Generic industrial cables often fail where it matters most: in EMI-heavy environments with constant vibration. Our M12 X-coded to RJ45 cable is tested to withstand:

Dual Shielding – Reduces packet loss caused by electromagnetic interference from nearby motors and drives
Flame Retardant VW-1 Jacket – Prevents fire propagation, protecting your factory control cabinet
Screw-Locking M12 Connector – Eliminates accidental pull-out common with unsecured RJ45-only cables
IP67 Sealing – Dust-tight and waterproof, withstands washdown environments
Tinned Copper Conductors – Rust-proof, corrosion-resistant for long-term reliability
100% Factory Tested – Open/short, hi-pot, and continuity tested before shipment

Aichie Tech

wire harness factory

cable assembly manufuturers

FAQ

1. Are you a factory or a trading company?

We are a Medium size factory, more than 15 quality staffs use CKP, PFMEA to manage our production process, we have made a lot of connectors, cables and wire harnesses for Automobiles, Boats and industries. All products are 100% tested before Delivery.

2. What certifications does this cable hold?

UL listed materials, TUV approved, CE, RoHS compliant, and ISO9001 factory certification. Test reports available upon request.

3. Can I order custom lengths, colors, or angled connectors?

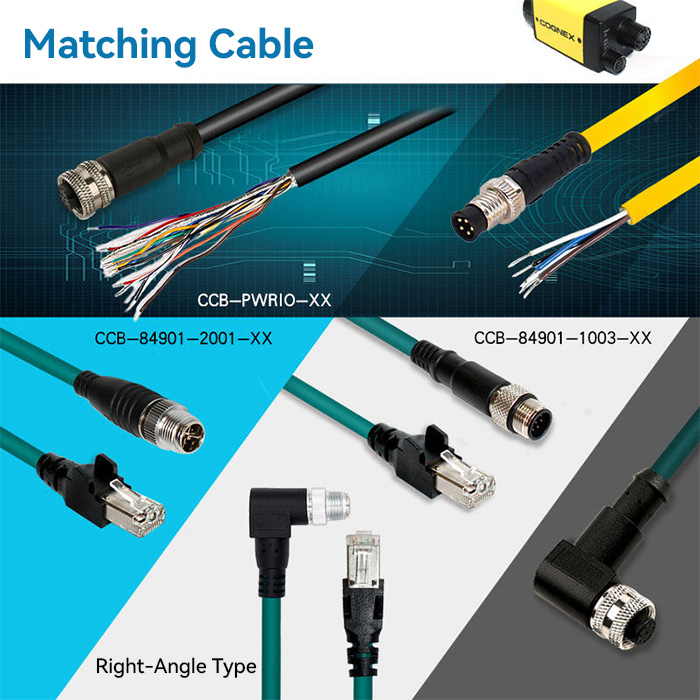

Absolutely. We support OEM/ODM customization: lengths from 0.1m to 50m, jacket colors (green/black/yellow/custom), right-angle M12 connector option, and different cable jacket materials (PVC/PUR). Volume MOQ applies.

4. Is this cable compatible with SICK, Datalogic, Keyence, Basler, and Baumer devices?

Yes. Verified compatibility with SICK GigE sensors, Datalogic Matrix 220/320, Keyence IV3/SR-5000, Basler vision cameras, Baumer image processing sensors, and Microscan HAWK MV-4000. Any device requiring M12 X-coded 8-pin Ethernet interface will work.

5. Can you provide samples for testing?

After price confirmation, you can require samples to test performance.Most of samples can be supplied by free ( depends on the kinds and qty),but always need you pay for shipping cost.

6. What is your lead time for mass production?

Honestly, it depends on order quantity and products complexity. Normal lead time is 3-6 weeks. Can I order custom lengths, colors, or angled connectors?

7. Is the cable VW-1 flame retardant certified?

Yes. The outer jacket complies with UL VW-1 (UL 2556) vertical flame test. The cable self-extinguishes within seconds after flame removal, critical for factory safety compliance

8. What's your warranty policy?

Five years warranty against manufacturing defects. Pre-shipment 100% electrical testing ensures zero DOA. Free replacement for any quality issue within 30 days of receipt.
