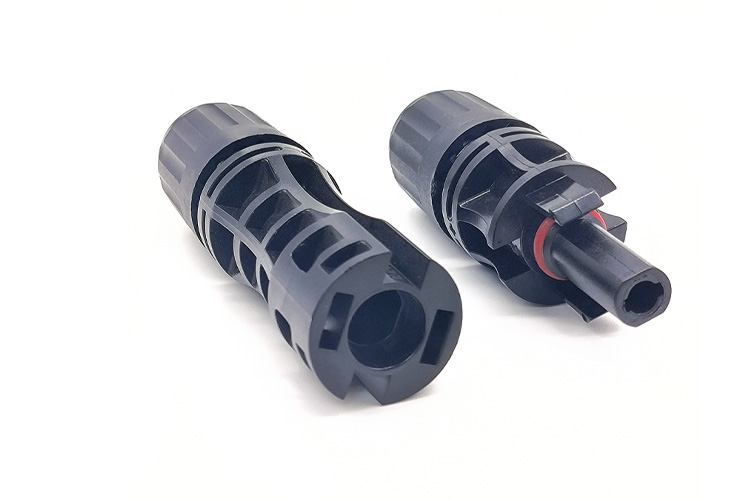

MC4 Compatible Solar Positive and Negative Power Connectors

Solar panel cable connectors compatible with PV cables of different insulation diameters (10AWG-14AWG)

  • Item NO.:

    PV-0000-05
  • Order(MOQ):

    100
  • Payment:

    T/T,L/C,Western Union,Paypal,MoneyGram
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    15 Days
Product Name Solar DC Connector
Model PV-0000-05
Rated Voltage 1000V DC
Rated Current 30A
Temperature Range -40℃~90℃/105℃
Material PC/PPO,Copper
Waterproof IP67
Flame class UL-94-V0
Salt mist spray test,degree of severity IEC 60068-2-52

【Product】Solar Panel Connectors Male & Female + 1 pairs solar connector pins (male & female)

【Compatible Cable】Compatible with PV cables with different insulation diameters (2.5m㎡~6m㎡/AWG14-10).

【Product Features】Operating temperature: -40℉ to 257℉; Rated voltage: 1000V DC; Rated Current: 30A.

【Waterproof & Dustproof】Design with sealing ring for dust resistance and waterproof, degree of waterproof is IP67; Flamebility rating is UL94-V0.

【Premium Material】Made of PPO insulation material, contact material is tin-plated copper. PPO material with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain, snowstorm or heat for a long time.

mc4 panel connector
