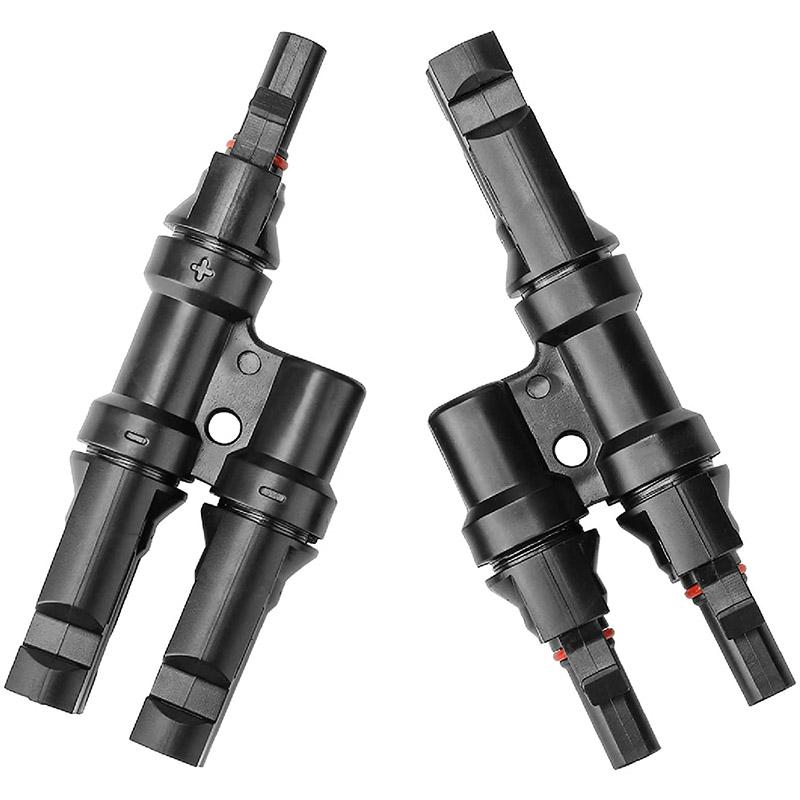

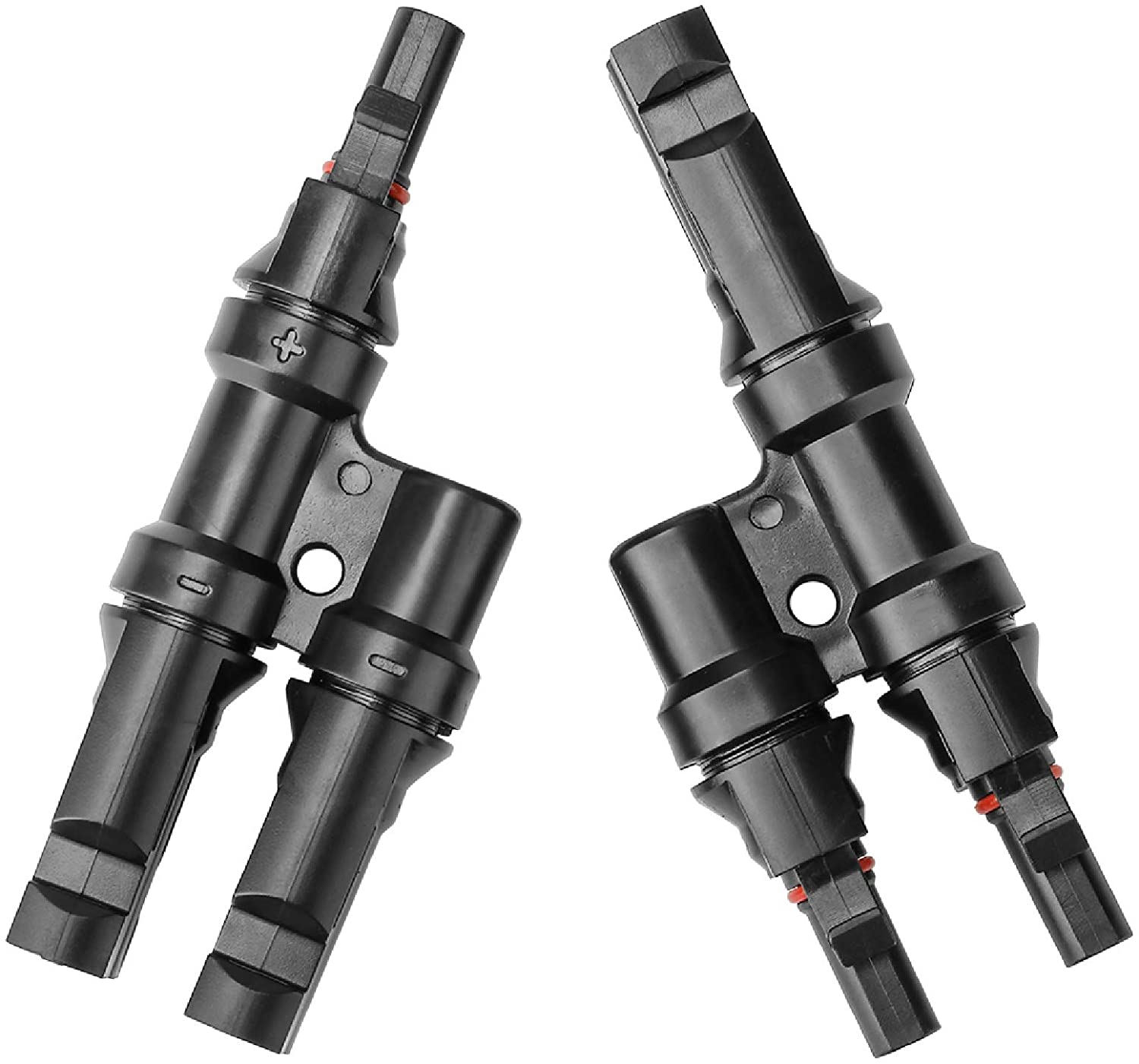

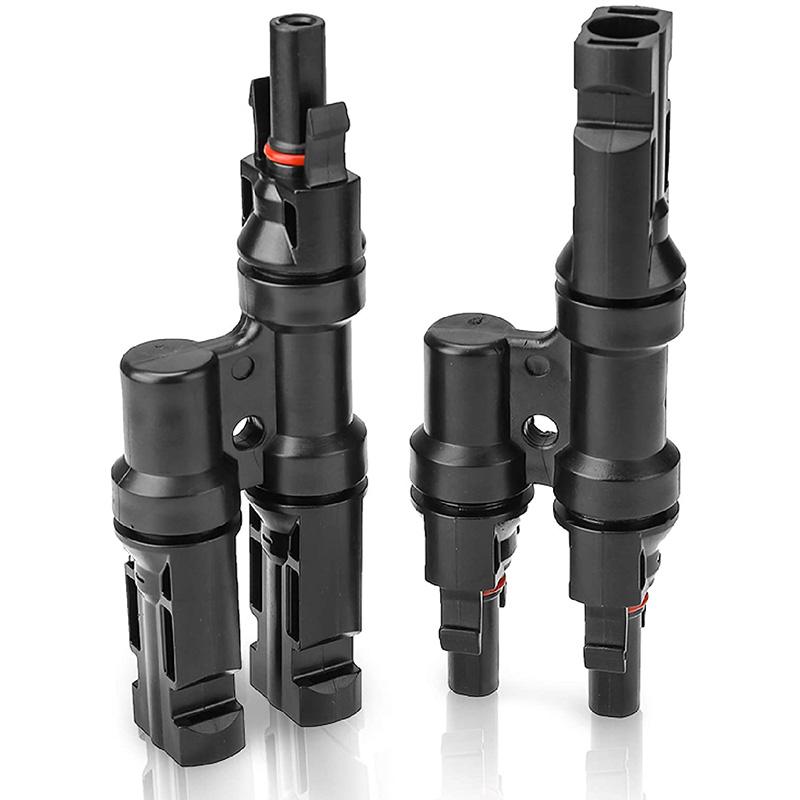

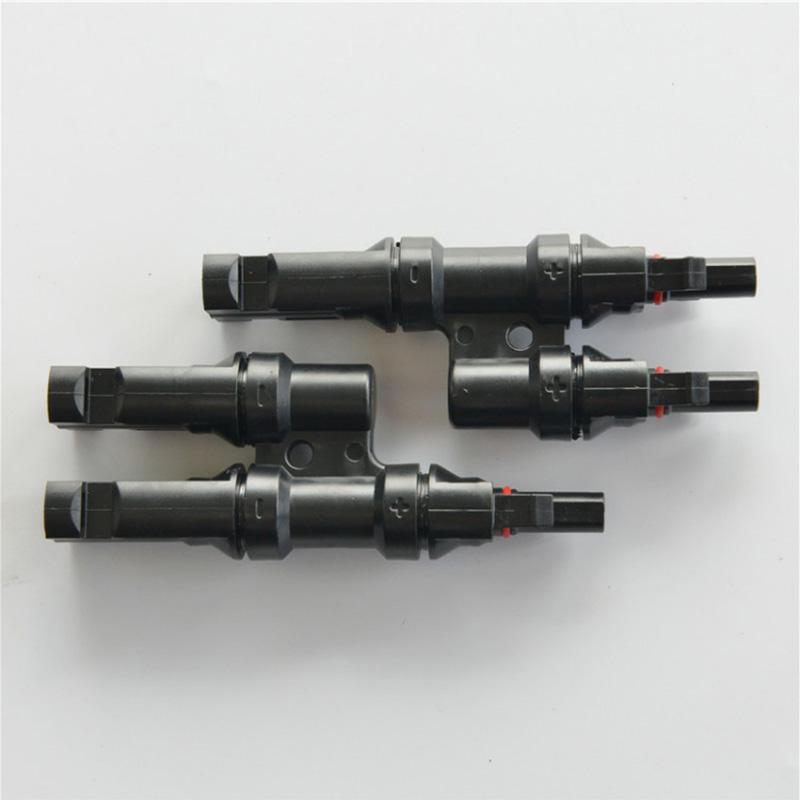

Y Branch Solar PV Connector Solar Plug Waterproof Sloar Connector

  • Compatible with 800+ solar module connectors
  • TUV approved & Quick and easy to install
  • Protection class IP67 Suitable for outdoor harsh environments
  • Stable connection & Reducing maintenance cost
  • Item NO.:

    AC-PV-LT2
  • Order(MOQ):

    100
  • Payment:

    EXW
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    15 Days
  • Weight:

    110

Solar connector feature:

1.Terminal with high pure electrolytic copper precision stamping;

2.Safety lock system , can guarantee that the abnormal condition to continue

3.Not in engagement against touch protection design;

4.The part components can be used for the entire system and equipment assembly;

5.In the entire temperature rang (as the derating curves without limitation) of high IP protection (IP67)

photovoltaic connectorssolar y branch connectorsmc4 male and female connectors

wire harness manufacturers
