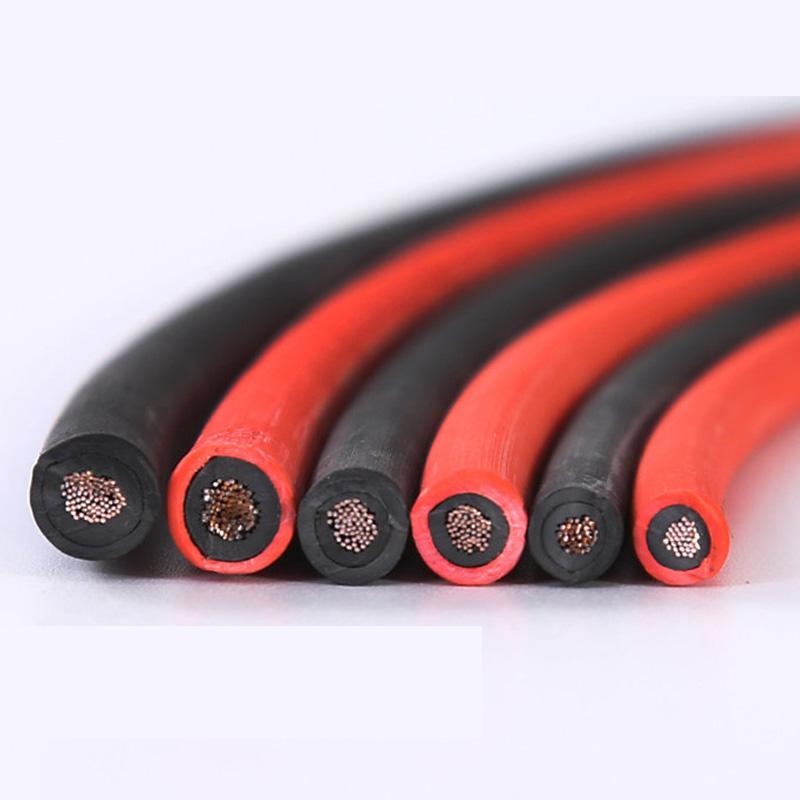

Double Insulated Solar DC Cables and Wires Manufacture UV protected and fire proof Loom Solar


Solar cable is a composite of several insulated wires enveloped by an outer jacket
  • Item NO.:

    AC-FS150
  • Order(MOQ):

    100
  • Payment:

    T/T,L/C,Western Union,Paypal,MoneyGram
  • Product Origin:

    China
  • Color:

    Black or Customized
  • Shipping Port:

    Shenzhen
  • Lead Time:

    15 Days

Double Insulated Solar DC Cables and Wires Manufacture UV protected and fire proof Loom Solar

1 .Rating Voltage of Solar cable:
600/1000V    ,1000/1800V DC
Temperature:-40°C-- 120°C

2. Description of solar wire:

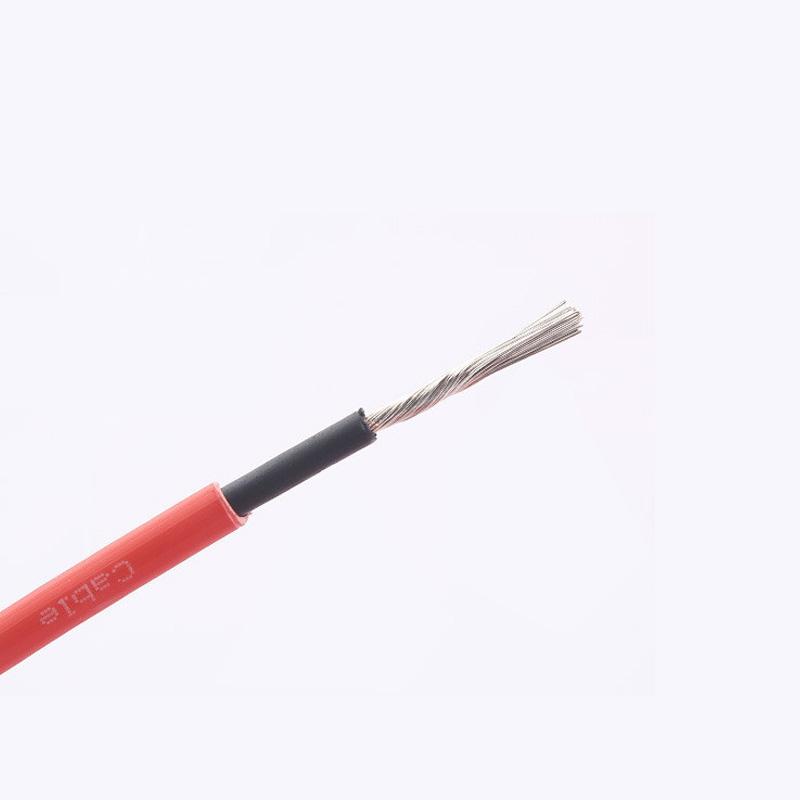

(1)Conductor: Stranded  Tinned annealed  copper wire
(2)Insulation:120°C XLPE , black
(3)Jacket:120°C XLPE , black or red

3.Application:
Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations.

4.General Characteristics:
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.



5.TECHNICAL PARAMETER DATA:


No.of cores x Nominal section area Nominal Construction of conductor Nominal
Insulation
thickness
Nominal
Sheath thickness
Nominal
Overall diameter
Nominal
Cable weight
Max.Resistance of conductor
at 20ºC
Current Carrying Capacity
PV Single core   Solar cable
No.X mm² No.X mm mm mm mm kg/km <=(Ω/km) A
1 x 1,5 30 x 0,25 0,8 0,8 4.8 38 13,7 30
1 x 2,5 50 x 0,25 0,85 0,9 5.4 46 8,21 41
1 x 4 56 x 0,30 0,85 1,0 6.1 61 5,09 55
1 x 6 84 x 0,30 0,9 1,1 7.0 90 3,39 70
1 x 10 80 x 0,40 0,9 1,2 8.2 131 1,95 98
1 x 16 128 x 0,40 0,9 1,2 9.3 187 1,24 132
1 x 25 200 x 0,40 0,9 1,2 10.7 278 0,795 176
1 x 35 280 x 0,40 0,9 1,2 12.4 374 0,565 218
PV Twin  core  Solar cable
No.X mm² No.X mm mm mm mm kg/km <=(Ω/km) A
2 x 1,5 30 x 0,25 0,8 0,8 4.8x9.6 76 13,7 30
2 x 2,5 50 x 0,25 0,85 0,9 5.4x10.8 92 8,21 41
2 x 4 56 x 0,30 0,85 1,0 6.1x12.2 122 5,09 55
2x 6 84 x 0,30 0,9 1,1 7.0x14.0 180 3,39 70
2x 10 80 x 0,40 0,9 1,2 8.2x16.4 262 1,95 98
2 x 16 128 x 0,40 0,9 1,2 9.3x18.6 374 1,24 132
2 x 25 200 x 0,40 0,9 1,2 10.7x21.4 556 0,795 176
2x 35 280 x 0,40 0,9 1,2 12.4x24.8 748 0,565 218

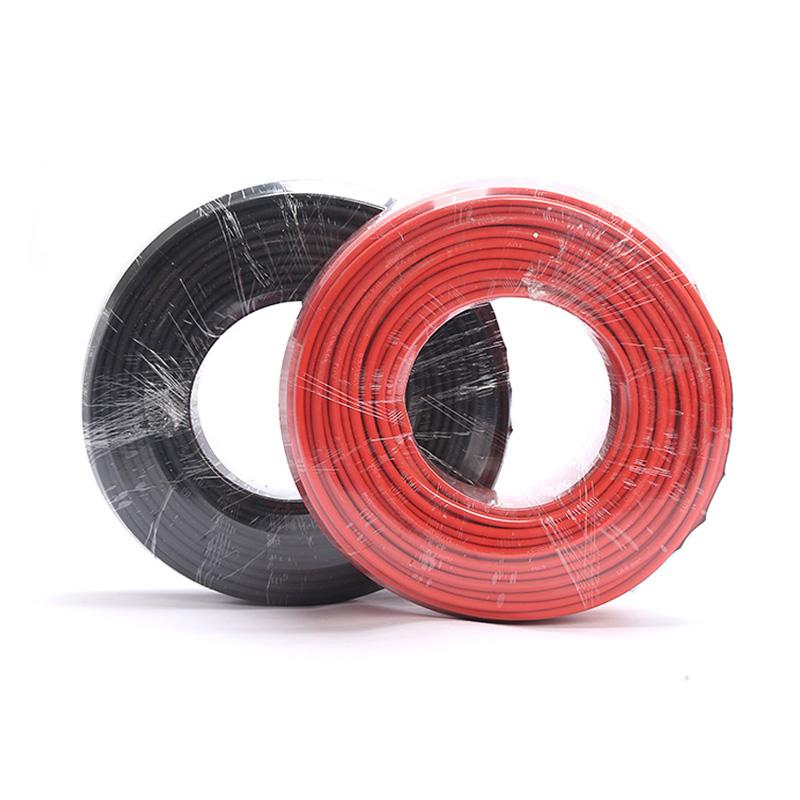

solar pv wire

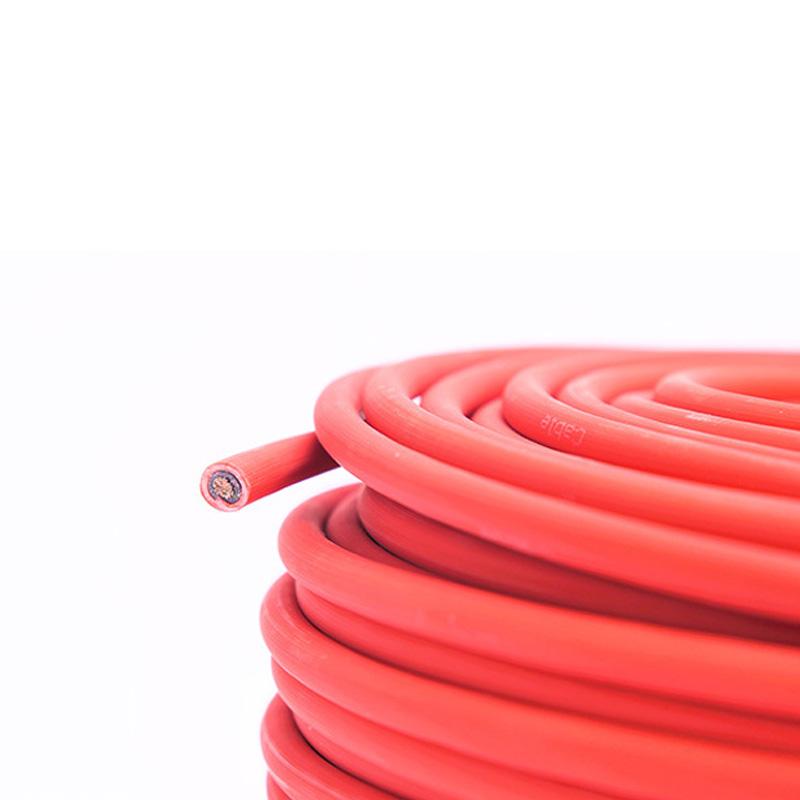

solar cables

FAQ

1. How does your factory control quality?
We are a Medium size factory, more than 15 quality staffs use CKP, PFMEA to manage our production process, we have made a lot of connectors, cables and wire harnesses for Automobiles, Boats and industries. All products are 100% tested before Delivery.

2. Is there any environmental risk on materials?
We are an ISO9001/ISO14001 certificated company, All our materials are RoHS 2.0 compliant, we select materials from big company and always be tested. Our products have exported to Europe and North America for more than 10 years, we can provide COC if needed.

3. How can I customize our products?
If you have drawings please send to us, if no drawings please send us photos or  samples, then tell us your SPEC. For a wire harness we need to know the connector type, wire gauge, wire length and wire diagram.

4. Can you supply OEM & ODM service?
Yes. We have specialized in manufacturing high quality connectors,  cables and wire harnesses for more than 10 years, we have a professional engineering team, OEM & ODM projects are warm welcome.

5. Can you provide samples for testing?
After price confirmation, you can require samples to test performance.Most of samples can be supplied by free ( depends on the kinds and qty),but always need you pay for shipping cost.

6. What is your lead time for mass production?
Honestly, it depends on order quantity and products complexity.
Normal lead time is 3-6 weeks.

7. Any warranties with your products?
We manufacturer long life, durable products for industries, Wire harnesses, always 5 years Warranties, connectors and cables we provide 5-10 years Warranties. This is the longest warranties in our industries, only we can give our customer this promise.

If you want to know more about our products,please contact us now!
