Electrical Flexible Oxygen-Free Copper Conductor PV Solar Wire for Solar System

Solar wire:

(1)Conductor: Stranded Tinned annealed copper wire
(2)Insulation:120°C XLPE , black
(3)Jacket:120°C XLPE , black or red

Item NO.:
AC-FS149
Order(MOQ):
100
Payment:
T/T,L/C,Western Union,Paypal,MoneyGram
Product Origin:
China
Color:
Black or Customized
Shipping Port:
Shenzhen
Lead Time：
15 Days

Inquiry now

Product Detail

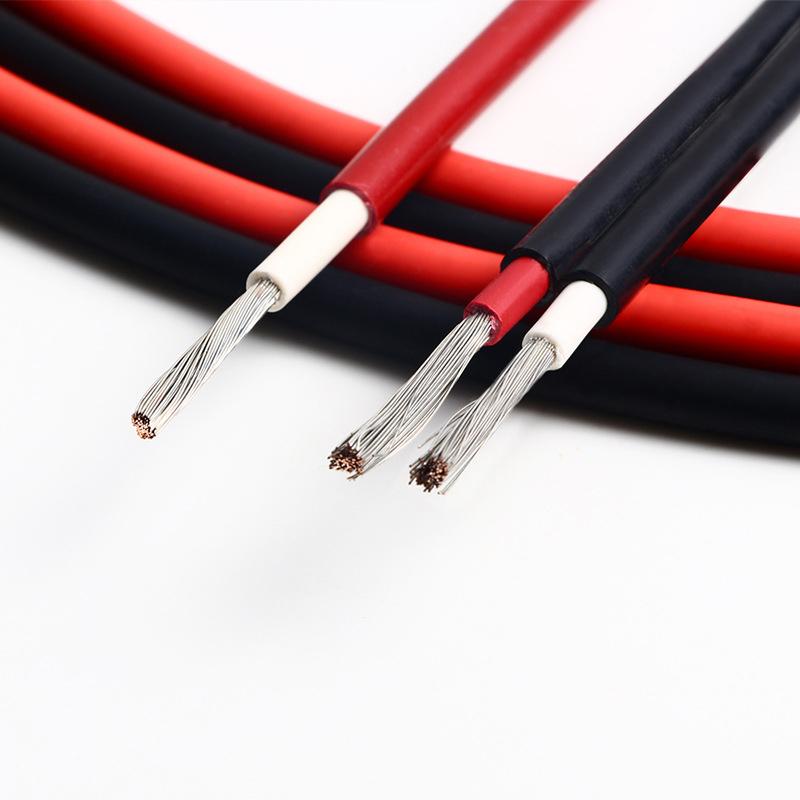

2.5mm 4mm 6mm Electrical Flexible Oxygen-Free Copper Conductor PV Wire for Solar System

1 .Rating Voltage:
600/1000V ,1000/1800V DC
Temperature:-40°C-- 120°C

2. Description:

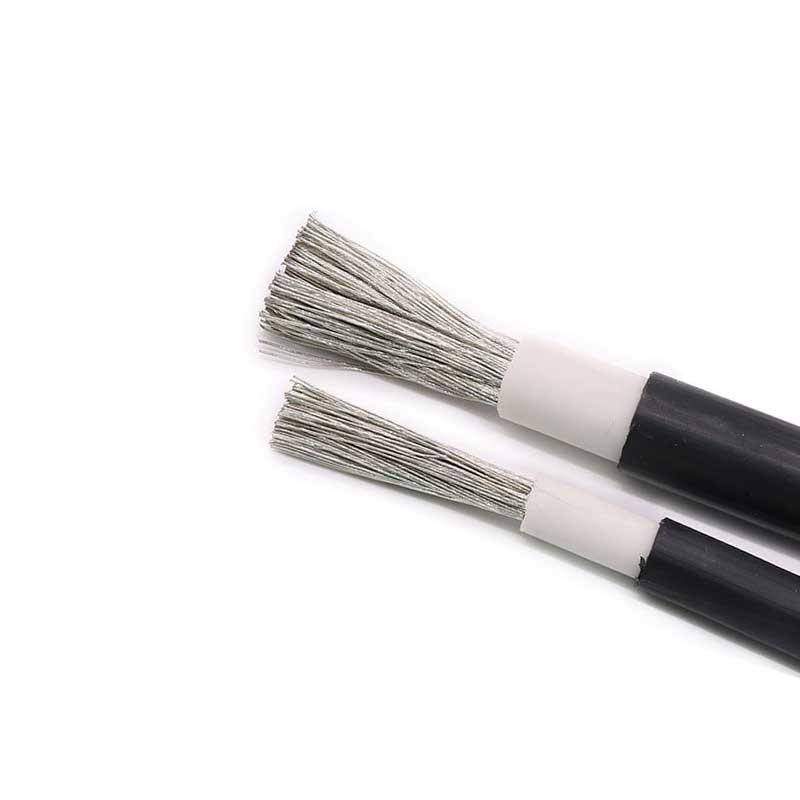

(1)Conductor: Stranded Tinned annealed copper wire
(2)Insulation:120°C XLPE , black
(3)Jacket:120°C XLPE , black or red

3.Application:
Specifically designed for connecting photovoltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions .For permanent installations.

4.General Characteristics:
Cable made of electron-beam cross-linked insulation and coating; high resistance against heat , cold, oil, abrasion, ozone, UV and weather; with improved reaction in case of fire . low smoke, halogen free , flame free , flame retardant; flexible, easy to strip, very low space requirement, extremely, extremely mechanically robust, very long lifetime.

5.TECHNICAL PARAMETER DATA:

No.of cores x Nominal section area	Nominal Construction of conductor	Nominal Insulation thickness	Nominal Sheath thickness	Nominal Overall diameter	Nominal Cable weight	Max.Resistance of conductor at 20ºC	Current Carrying Capacity
PV Single core Solar cable
No.X mm²	No.X mm	mm	mm	mm	kg/km	<=(Ω/km)	A
1 x 1,5	30 x 0,25	0,8	0,8	4.8	38	13,7	30
1 x 2,5	50 x 0,25	0,85	0,9	5.4	46	8,21	41
1 x 4	56 x 0,30	0,85	1,0	6.1	61	5,09	55
1 x 6	84 x 0,30	0,9	1,1	7.0	90	3,39	70
1 x 10	80 x 0,40	0,9	1,2	8.2	131	1,95	98
1 x 16	128 x 0,40	0,9	1,2	9.3	187	1,24	132
1 x 25	200 x 0,40	0,9	1,2	10.7	278	0,795	176
1 x 35	280 x 0,40	0,9	1,2	12.4	374	0,565	218
PV Twin core Solar cable
No.X mm²	No.X mm	mm	mm	mm	kg/km	<=(Ω/km)	A
2 x 1,5	30 x 0,25	0,8	0,8	4.8x9.6	76	13,7	30
2 x 2,5	50 x 0,25	0,85	0,9	5.4x10.8	92	8,21	41
2 x 4	56 x 0,30	0,85	1,0	6.1x12.2	122	5,09	55
2x 6	84 x 0,30	0,9	1,1	7.0x14.0	180	3,39	70
2x 10	80 x 0,40	0,9	1,2	8.2x16.4	262	1,95	98
2 x 16	128 x 0,40	0,9	1,2	9.3x18.6	374	1,24	132
2 x 25	200 x 0,40	0,9	1,2	10.7x21.4	556	0,795	176
2x 35	280 x 0,40	0,9	1,2	12.4x24.8	748	0,565	218

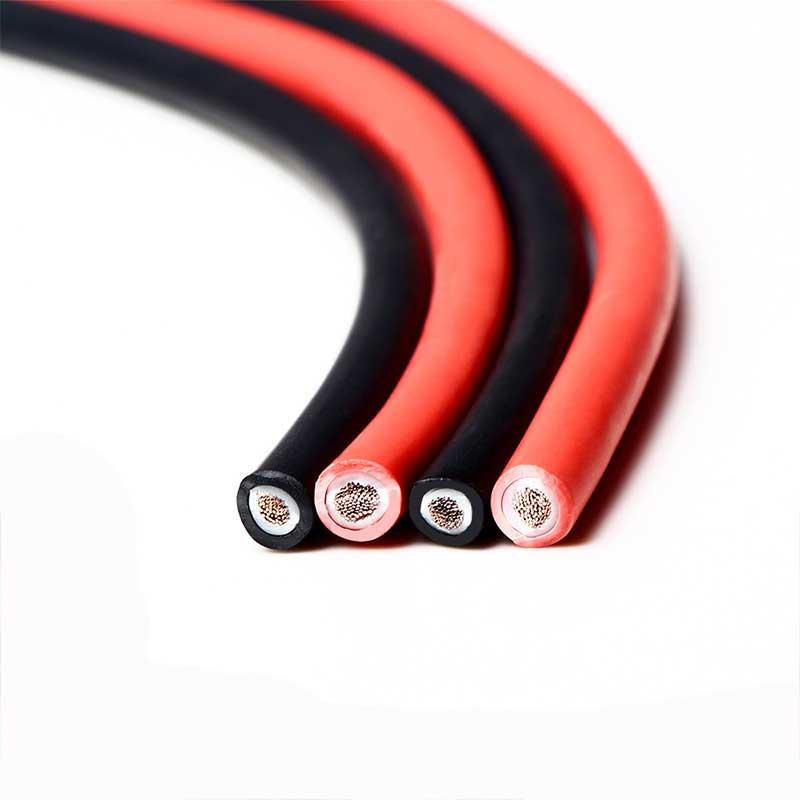

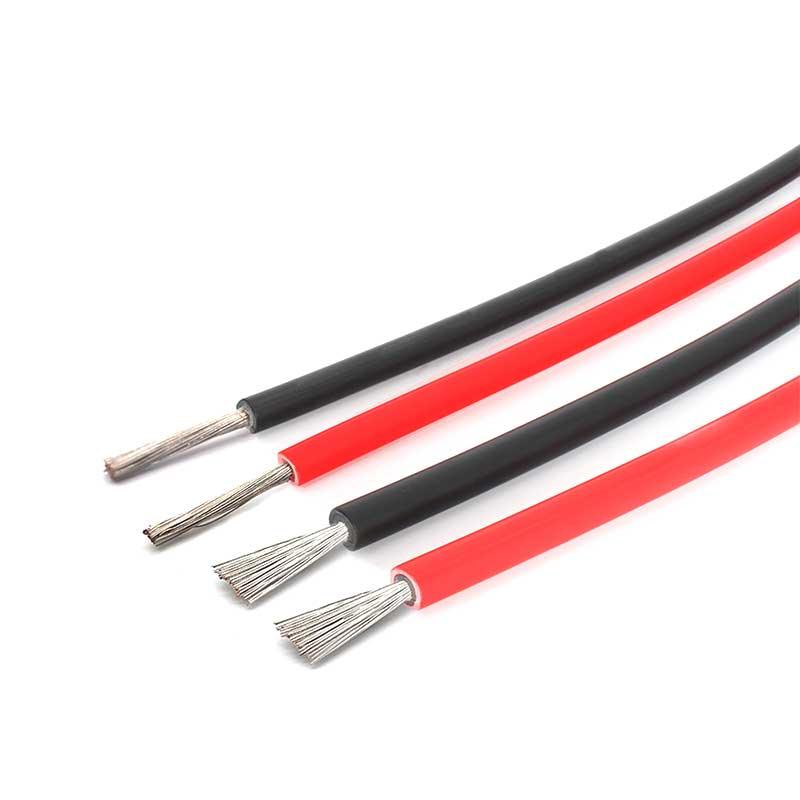

2.5mm solar wire

solar cable

FAQ

1. How does your factory control quality?

We are a Medium size factory, more than 15 quality staffs use CKP, PFMEA to manage our production process, we have made a lot of connectors, cables and wire harnesses for Automobiles, Boats and industries. All products are 100% tested before Delivery.

2. Is there any environmental risk on materials?

We are an ISO9001/ISO14001 certificated company, All our materials are RoHS 2.0 compliant, we select materials from big company and always be tested. Our products have exported to Europe and North America for more than 10 years, we can provide COC if needed.

3. How can I customize our products?

If you have drawings please send to us, if no drawings please send us photos or samples, then tell us your SPEC. For a wire harness we need to know the connector type, wire gauge, wire length and wire diagram.

4. Can you supply OEM & ODM service?

Yes. We have specialized in manufacturing high quality connectors, cables and wire harnesses for more than 10 years, we have a professional engineering team, OEM & ODM projects are warm welcome.

5. Can you provide samples for testing?

After price confirmation, you can require samples to test performance.Most of samples can be supplied by free ( depends on the kinds and qty),but always need you pay for shipping cost.

6. What is your lead time for mass production?

Honestly, it depends on order quantity and products complexity.
Normal lead time is 3-6 weeks.

7. Any warranties with your products?

We manufacturer long life, durable products for industries, Wire harnesses, always 5 years Warranties, connectors and cables we provide 5-10 years Warranties. This is the longest warranties in our industries, only we can give our customer this promise.

If you want to know more about our products,please contact us now!

Tel: +86 769 23361430	WeChat: +86 18027502150
WhatsApp: +86 18027502150	Skype: live:.cid.8643b3df38ff8b5
Email: sales03@aichie.com	Online Store: www.aichie.en.alibaba.com
