What is waterproof wire cables? Sep 14, 2023

First, passive water blocking materials


Filling the cable with passive water blocking material petroleum paste is the main measure of water blocking in the early power cable. This method can effectively prevent the water outside the cable, but the filling of petroleum paste has the following disadvantages:

1. Greatly increase the weight of the cable;

2. The conductivity of cable core decreases;

3. The oil paste is seriously polluted to the cable joint and difficult to clean;

4. The complete filling process is not easy to control, and the filling is not full, resulting in poor water blocking effect.

wire cables

Second, active water blocking materials

At present, the active water blocking materials used in cables are mainly water blocking hose, water blocking powder, water blocking rope and water blocking yarn. Compared with petroleum paste, the basic characteristics of active water blocking materials are strong water absorption and high expansion rate, which can absorb water strongly and expand rapidly, forming a gel-like substance to block the seepage channel, so as to ensure the safety of cable insulation. In addition, the active water blocking material is light in weight, clean, easy to lay and connect, but the active material also has some shortcomings:

1. It is difficult to attach the water-blocking powder;

2. Water block or water block yarn will cause the outer diameter to increase, heat dissipation difficulty, accelerate the cable thermal aging and limit the cable transmission capacity;

3. Active water blocking materials are generally more expensive.

Water resistance analysis: At present, the purpose of preventing water from penetrating into the insulation layer through the protective layer is mainly to increase the waterproof layer in China. However, in order to achieve the comprehensive water resistance of the cable, it is necessary to consider not only the radial water penetration of the cable, but also the longitudinal diffusion along the cable after effectively preventing the water from invading the cable.

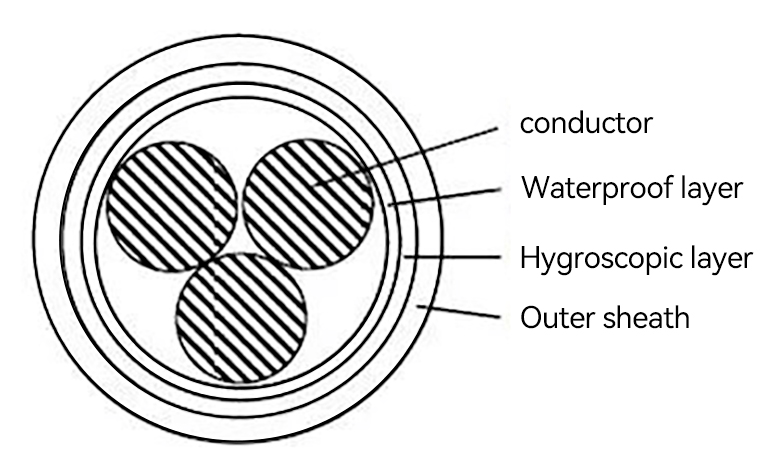

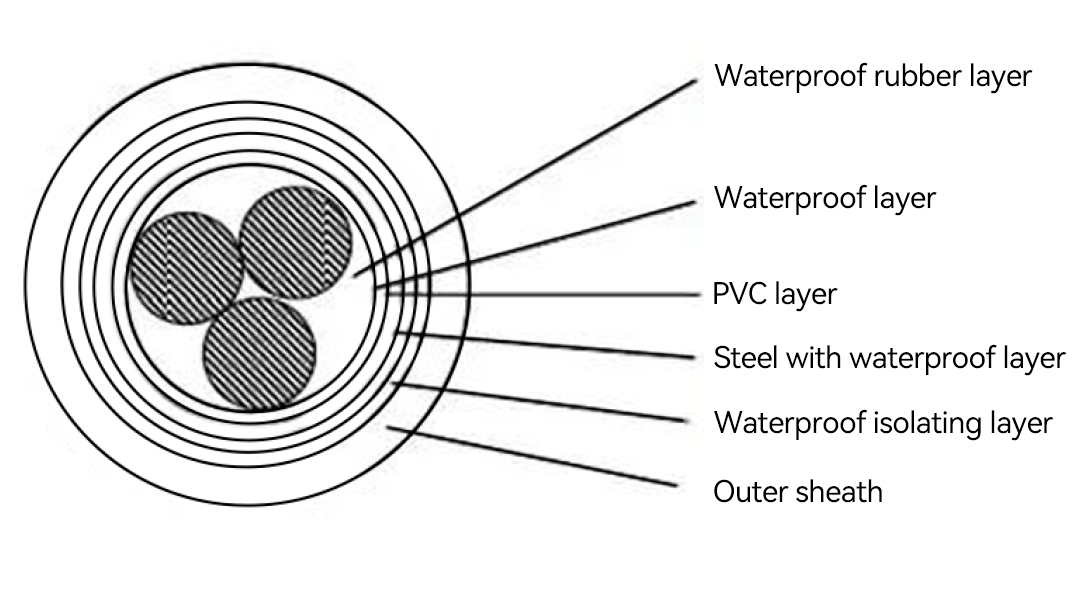

△ Radial water blocking structure

Polyethylene (inner sheath) waterproof insulation jacket: The extruded polyethylene water blocking layer combined with a moisture absorbing cushion (such as a water blocking tape) can meet the longitudinal water and moisture resistance requirements of cables laid in general humid environments. The water blocking layer of polyethylene material is easy to achieve in the process, without adding equipment.

Aluminum-plastic composite with polyethylene bonded waterproof isolation sleeve: If the cable is laid in water or a particularly humid environment, the radial water resistance of the polyethylene waterproof isolation sleeve is insufficient. For cables with high radial water resistance performance, a layer of aluminum-polyethylene composite tape is now used more in the cable core. Its water sealing is hundreds or even thousands of times higher than a single polyethylene, as long as the joint of the composite belt is completely bonded and sealed moisture is almost impenetrable. Aluminum-polyethylene composite tape needs to adopt longitudinal packaging process and bonding process, which requires certain capital investment and equipment transformation.

△ Longitudinal water blocking structure

In engineering practice, the realization of longitudinal water resistance is more complicated than that of radial water resistance. Longitudinal water resistance has also been used in many ways, such as changing the conductor to a compact structure, but the effect is not obvious, because there is a gap in the conductor of the compact structure, water will still spread through the siphon effect. In order to realize the real longitudinal water resistance, the water resistance material must be filled in the gap of the stranded conductive wire core. The longitudinal water resistance of the cable can be achieved by the following two levels of measures and structures:

1. Use water-blocking conductors. Add water-blocking rope, water-blocking powder, water-blocking yarn or wrap water blocking hose when stranding tight conductors;

2. Use water-blocking cable core. In the cable core forming process, fill the water-blocking yarn, rope and wrap the semi-conductive resistance hose or insulation hose.

At present, the problem of longitudinal water-blocking conductor lies in water-blocking conductor. How to fill water-blocking material between conductors and what kind of water-blocking material is always a hot research issue.


Concluding discussion

Radial water blocking technology is mainly used to wrap a waterproof isolation layer around the conductor insulation layer, and add a moisture absorbing pad outside the waterproof isolation layer. Medium voltage cables generally use aluminum-plastic composite tape, and high voltage cables use metal sealing sleeves of lead, aluminum and stainless steel.

The longitudinal water blocking technology is mainly used to fill the gap between the conductive wire core with water blocking material to block the diffusion channel of water in the cable core. From the current technical development point of view, longitudinal water blocking with water blocking powder filling is relatively good.

The realization of cable waterproof will inevitably affect the heat dissipation and electrical conductivity of the cable, and the appropriate water-blocking cable structure should be selected or designed according to the actual needs of the project.
